XV Series | Transparent LED Display - Feature Showcase

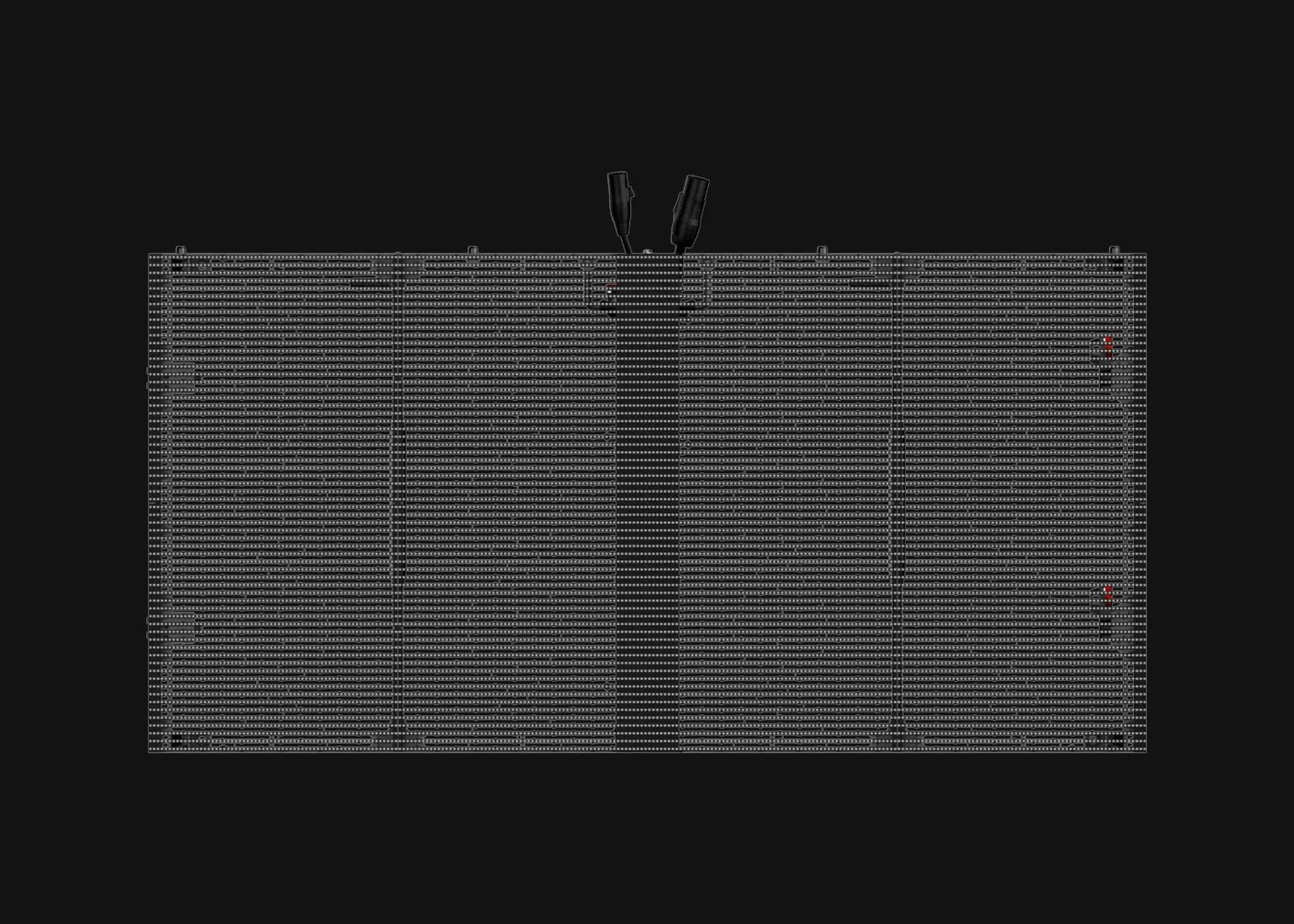

High Transparency

52% Transparency* Keeping perfect visual performance while maintaining high transparency

XV Series | Transparent LED Display - Feature Showcase

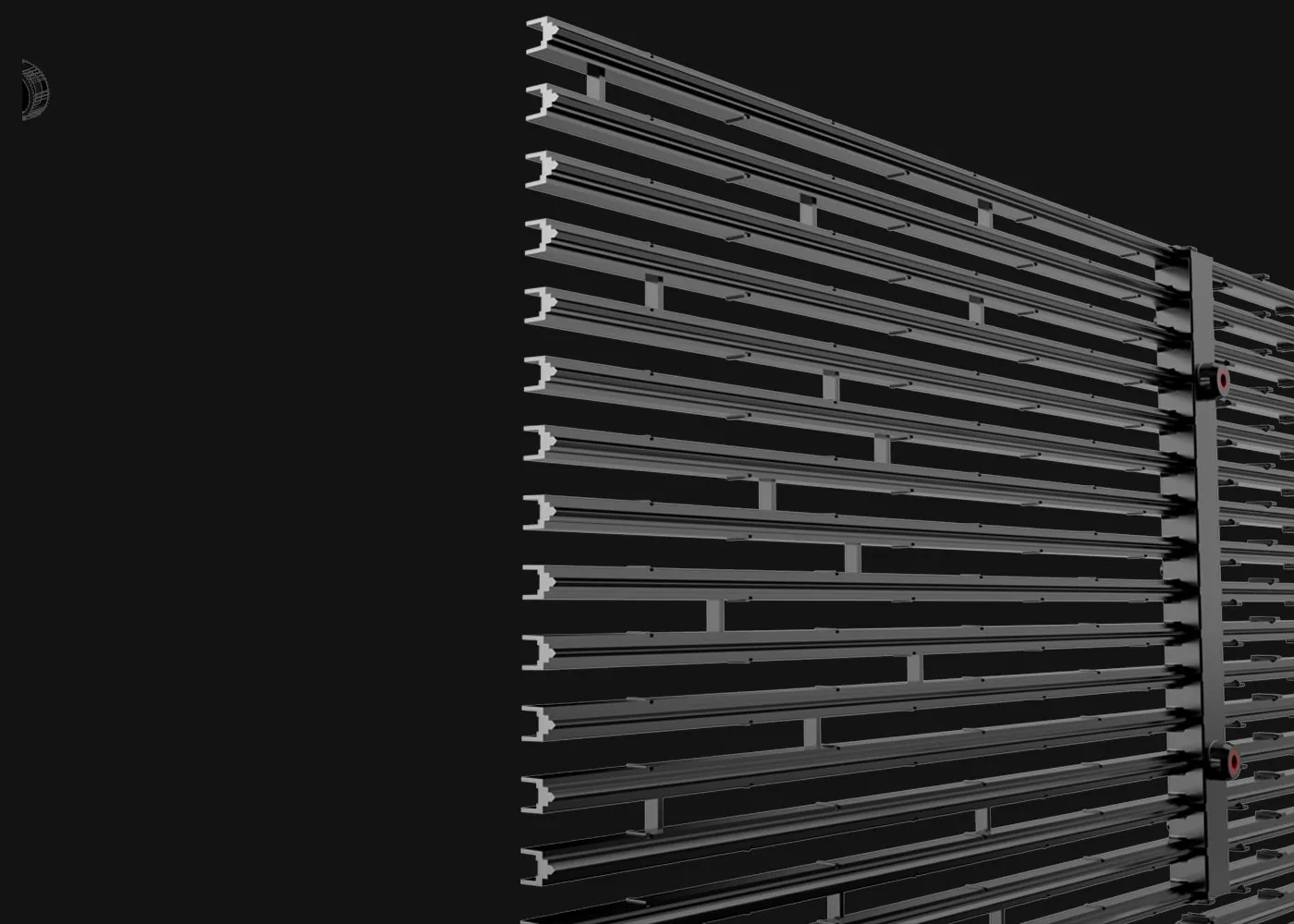

High Transparency

Vertical transparency angle---90° More lights would come out from the back of the screen within the VTA (Vertical transparency angle)

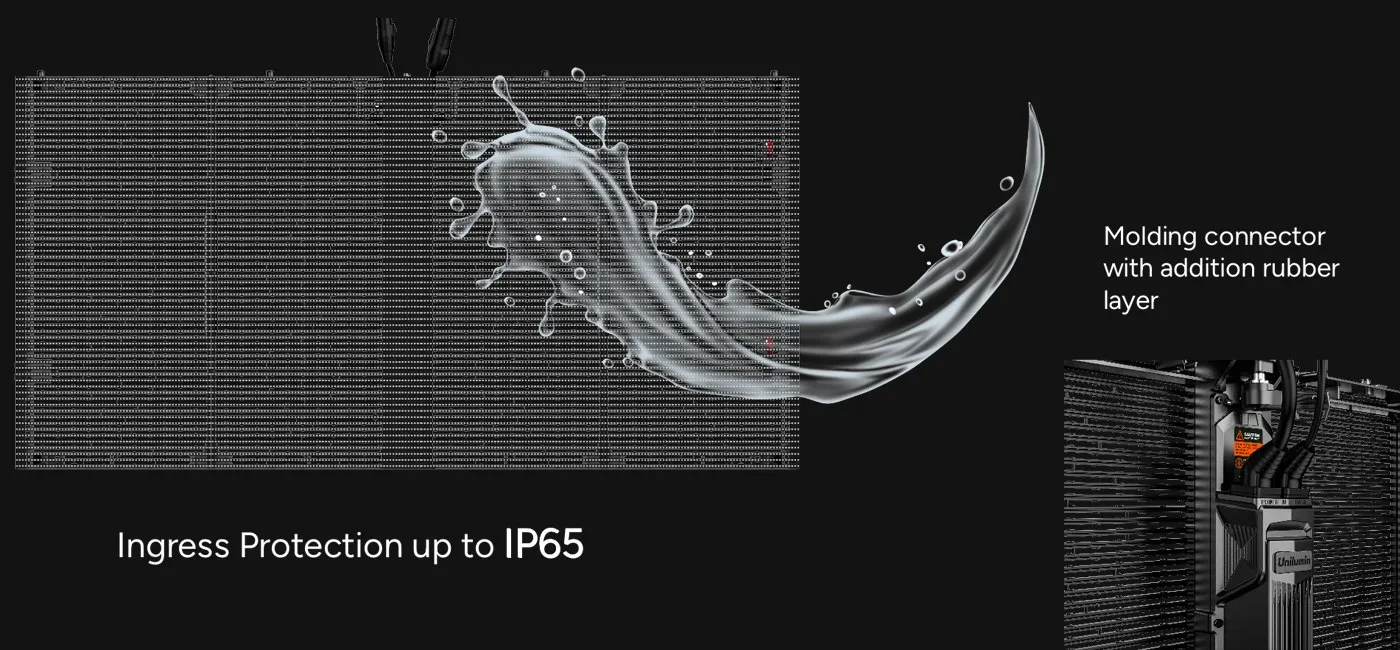

Waterproof

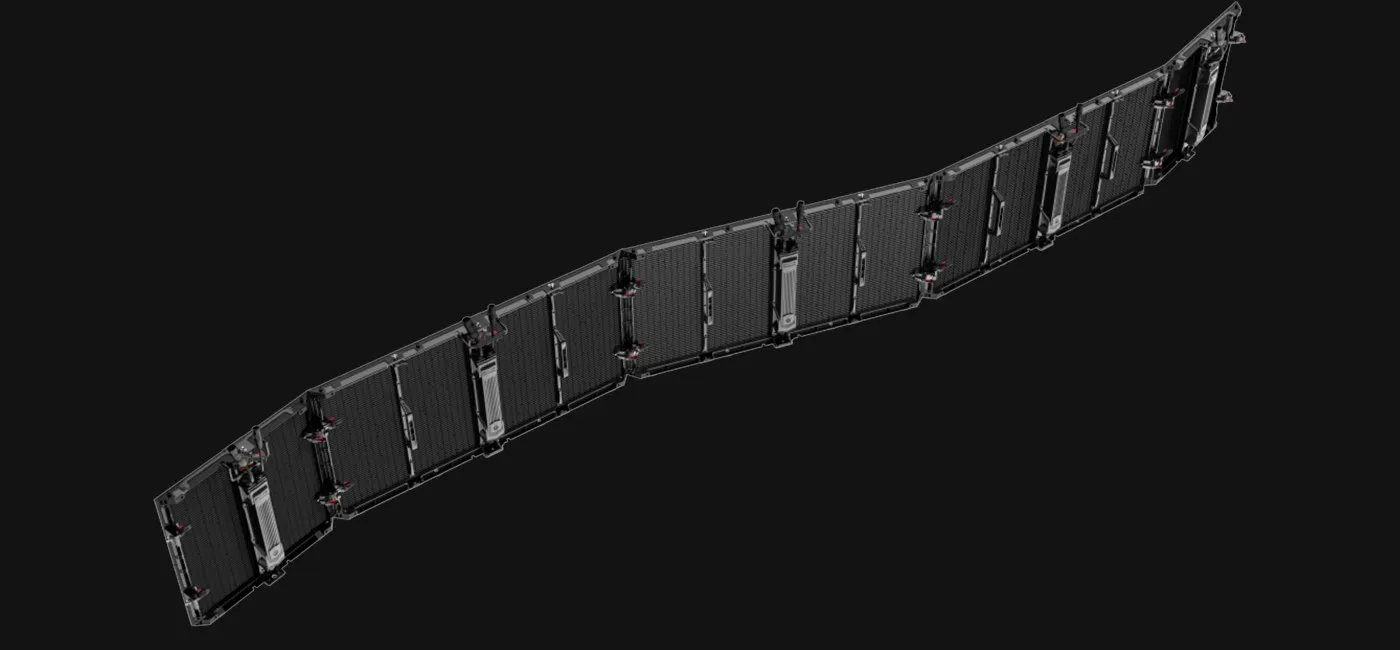

Curved Installation

Curve Range: -15°~+15° (2.5°/Unit) Creating more options for the shows
XV Series | Transparent LED Display - Feature Showcase

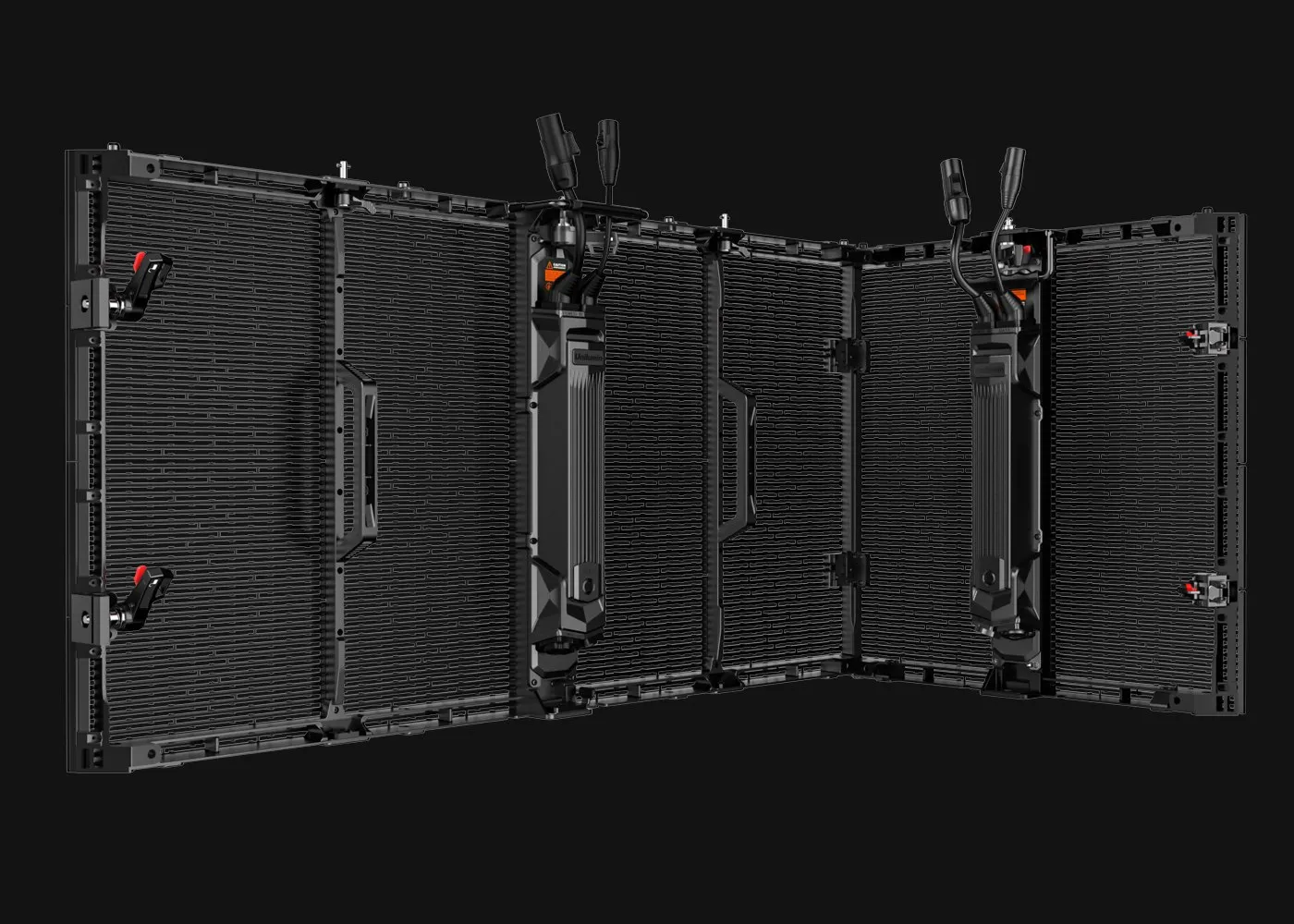

Right Angle Installation

Both 1000*500 and 500*500 support 90° splicing

XV Series | Transparent LED Display - Feature Showcase

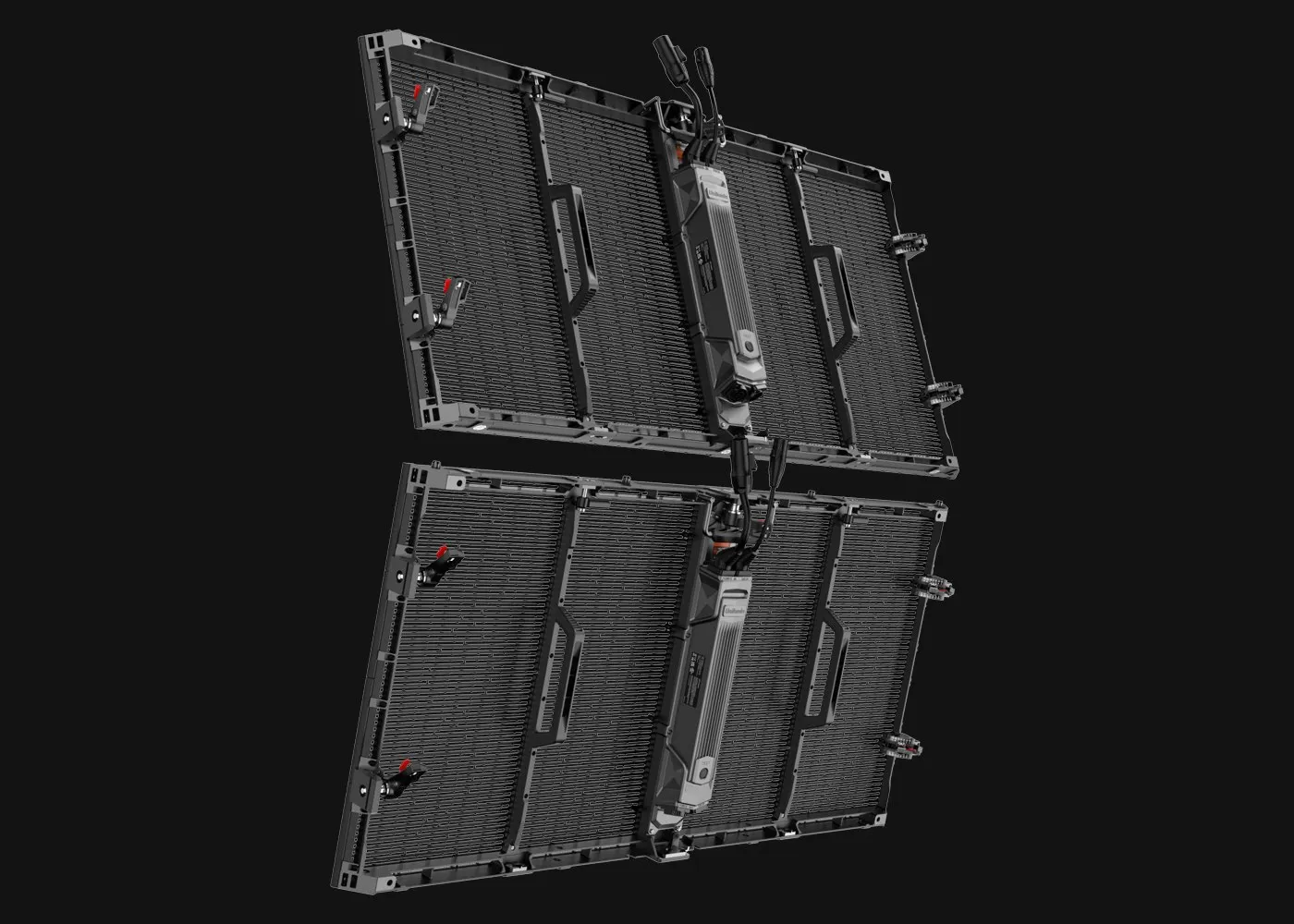

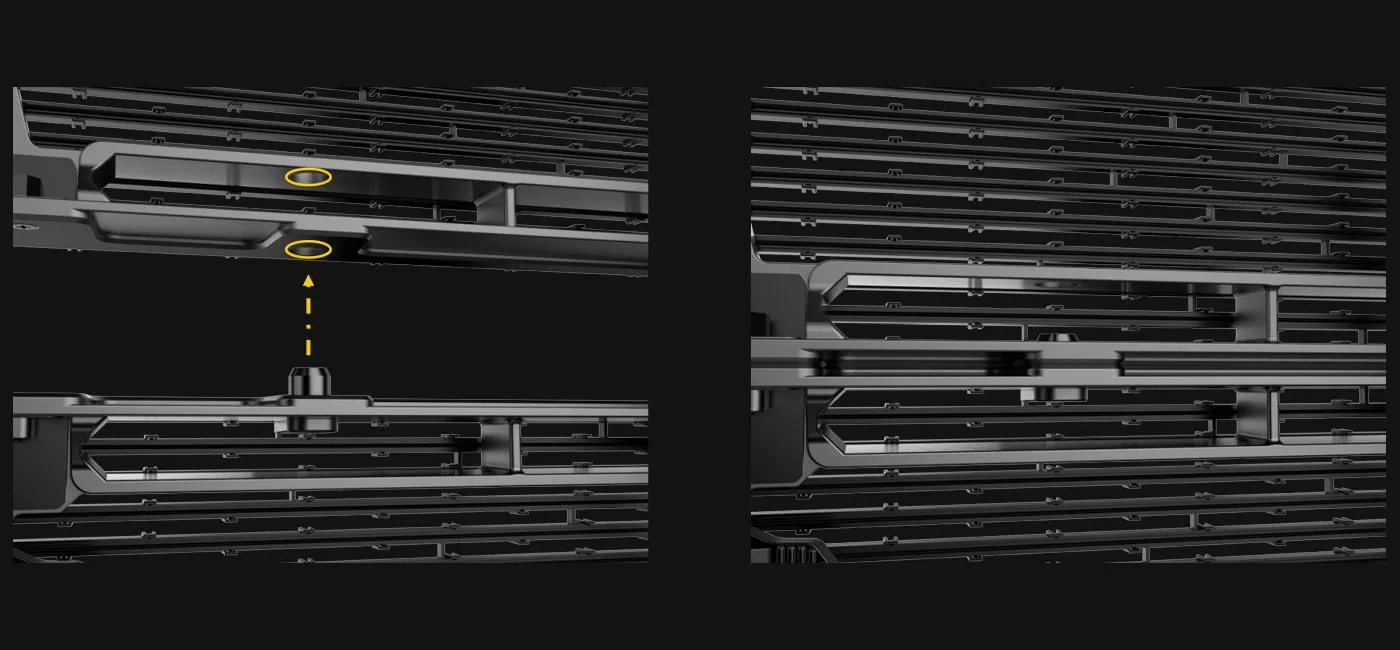

One-person Installation

Magnets on the top and bottom of the screen to support one-person installation.

XV Series | Transparent LED Display - Feature Showcase

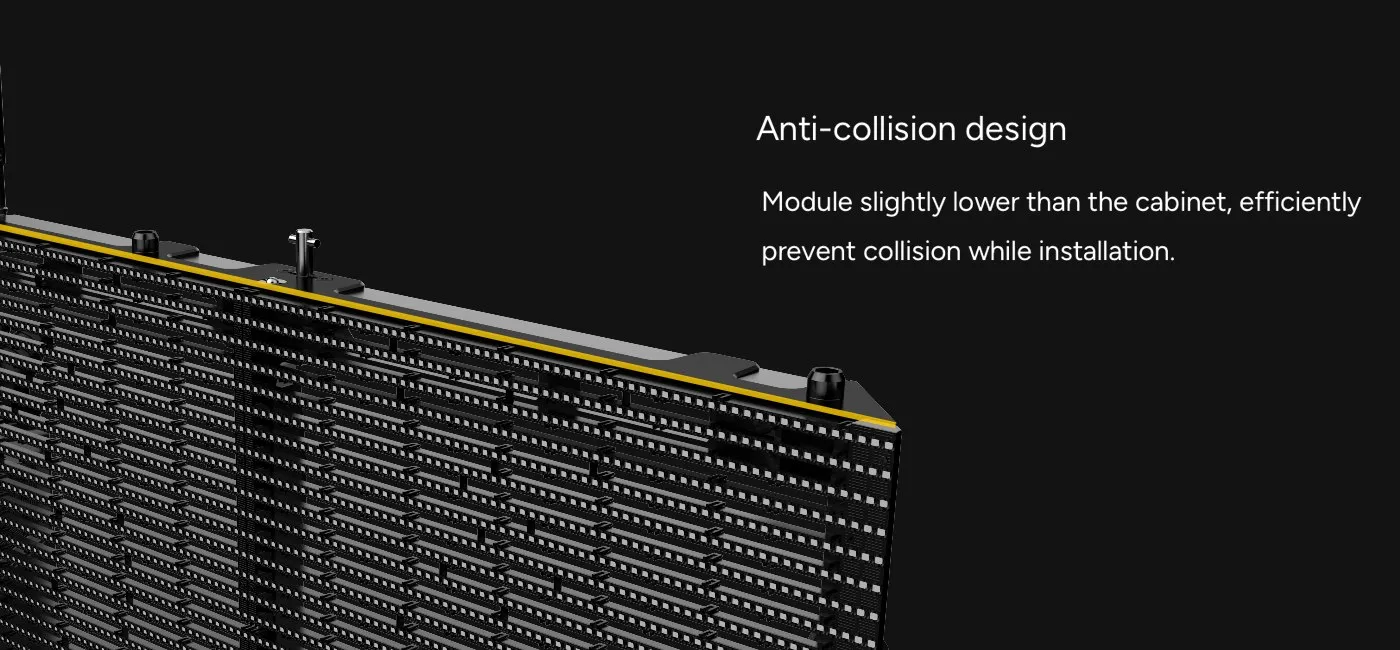

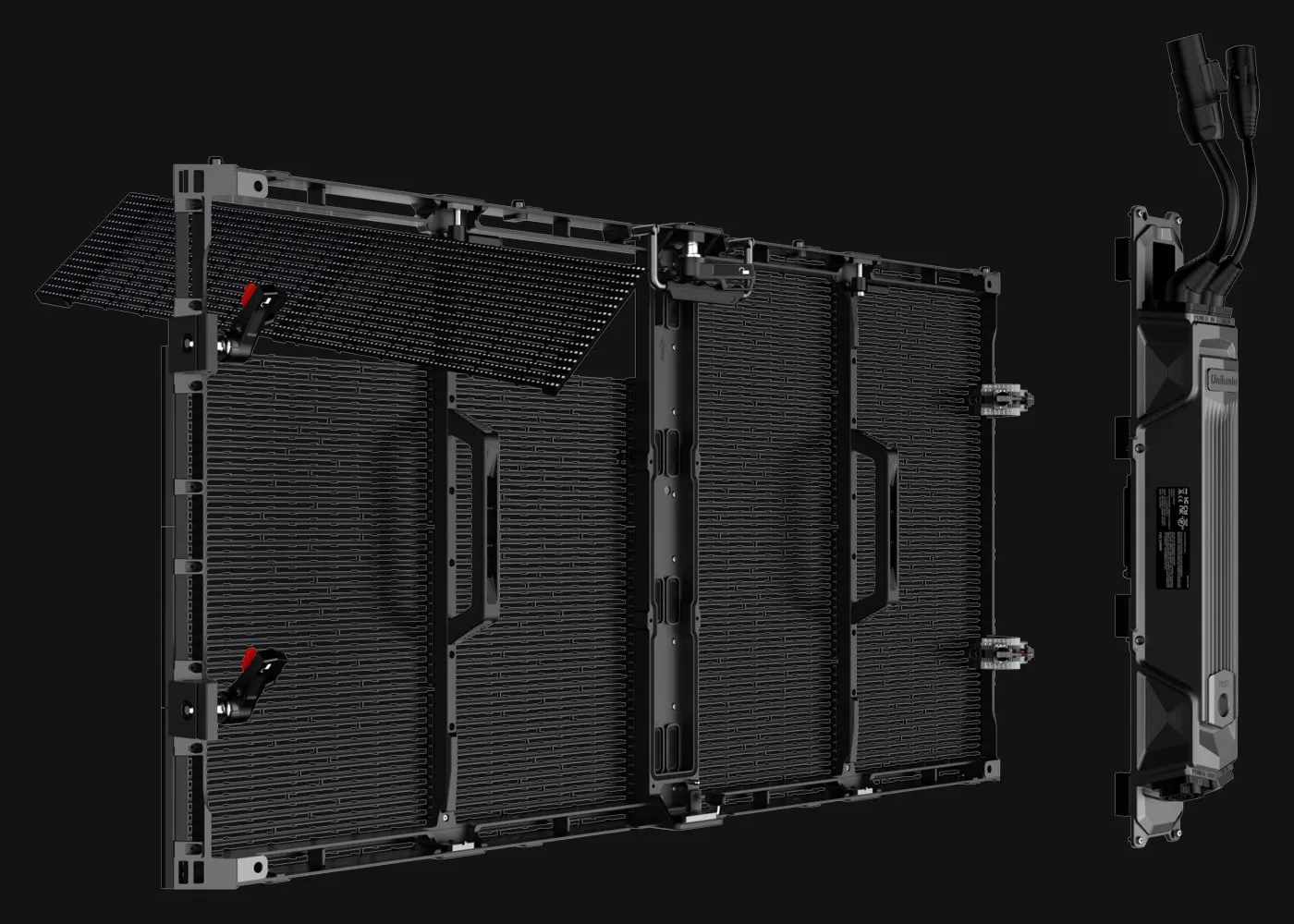

Modular Design

”¬¢ Module Rear maintenance ”¬¢ All-in-one independent power box

Specifications

Panel Cabinet
Pixel Pitch
3.9 mm
LED Type
3 in 1 SMD
Brightness
2000/4000 nits
Pixels Per Panel
256/128×64 dots
Pixel Density
32,768
Weight
4.6 kg
Module Size
W500mm×H125mm
Material
Aluminum
Environment
Outdoor
Ingress Protection
IP65
Curve Range
±15°

The information on this page comes from manufacturer documentation which could be incorrect. If you find any specs that are incorrect please let us know
