CPS Series
Side view 1
Side view 2
Side view 3
Side view 4

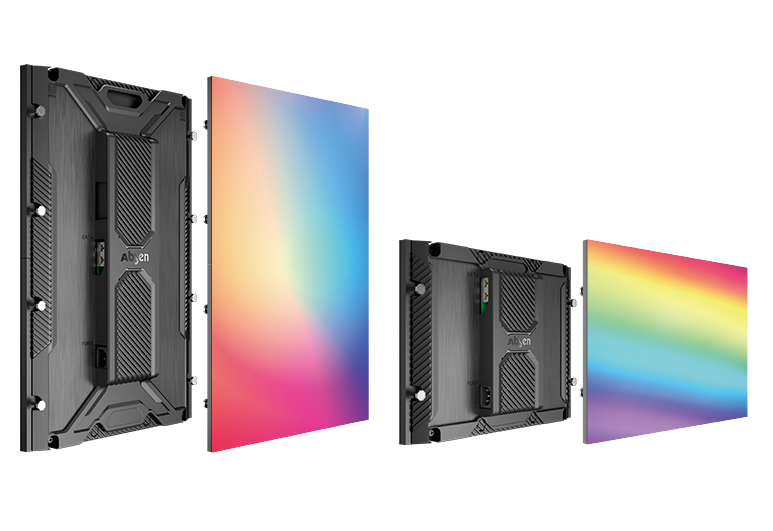

Ready-to-Use LED Panel with Superior Quality

High heat resistance, exceptional strength, lightweight glass-reinforced plastics housing for deformation-free performance. Integrated design guarantees stability, arrives pre-assembled for effortless flatness

The Fusion of Minimalism & Hive-Engineered Precision

The CPS series, for all commercial display applications, is available in 1.8mm, 2mm, 2.5mm pixel pitches. Inspired by hive structure and modern mecha-style, our product unites bold lines with a dynamic attitude. The hive symbolizes exceptional structural engineering and optimal space utilization, elevating product strength and durability. Its distinctive yet minimalist design is a testament to Absen's unceasing dedication to innovation and excellence in the LED industry.

· Pixel Pitch: 1.8mm, 2mm, 2.5mm
· Panel dimension:
320(W)*480(H)*46.5(D)mm,
320(W)*240(H)*46.5(D)mm

Ready-to-Use LED Panel with Superior Quality

High heat resistance, exceptional strength, lightweight glass-reinforced plastics housing for deformation-free performance. Integrated design guarantees stability, arrives pre-assembled for effortless flatness.

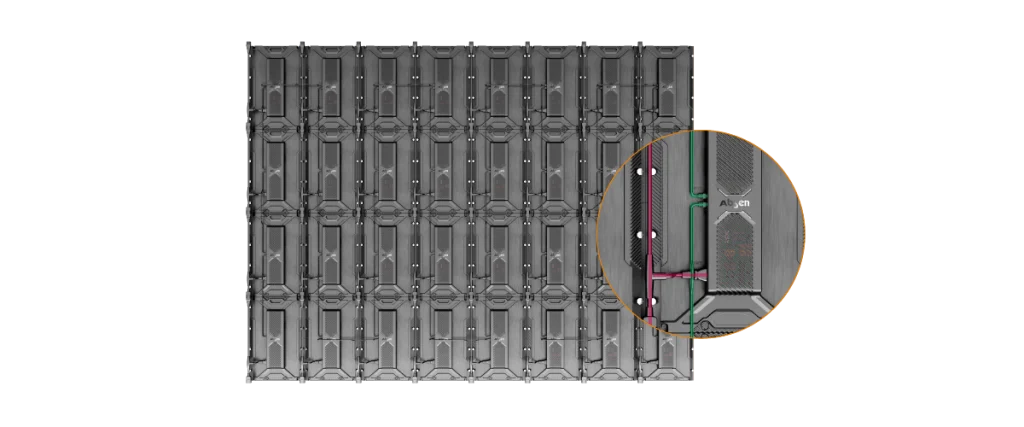

Neat Cabling, Simple Operations

Utilize ethernet for signals, T-connectors for power—straightforward, easy, convenient. Discover the simplicity of our LED display products.

Small Panel for Flexible Splicing

Explore boundless possibilities for customization with our versatile LED displays. Achieve the perfect view by adjusting and blending to fit your needs.


L-Shaped Corners for Versatile Styling

Unleash creativity with our unique L-shaped corner design. It enables versatile styling, including column wrapping, catering to a myriad of display needs.

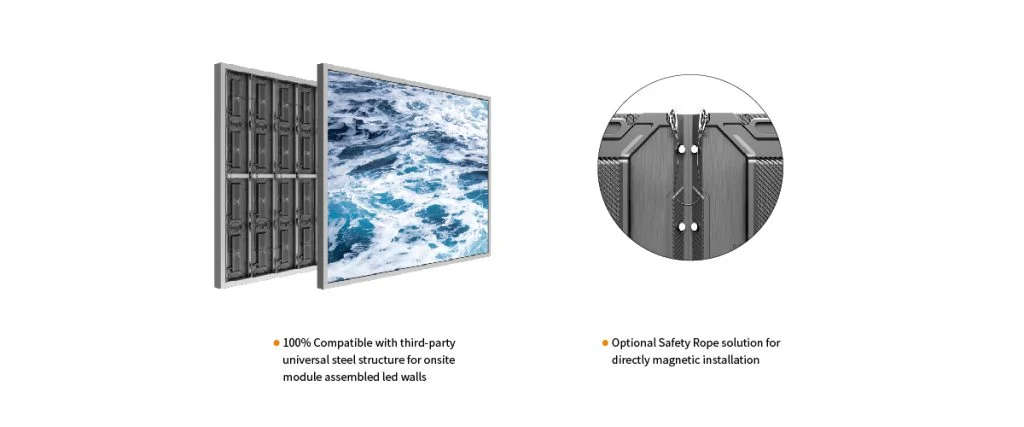

Steel Structure Direct Magnetic Installation

Achieve lightning-fast installations using our magnetic setup approach. Craft displays with unparalleled ease and efficiency, ideal for screens up to 30㎡ in size and under 4m in height.


Die-Cast Aluminum Frame Installation Solution

Effortlessly build large screens with the die-cast aluminum frame, perfect for setups over 30㎡ in size and over 4m in height. Supports wall-mount, stacking and ceiling installations with enhanced flatness guaranteed.

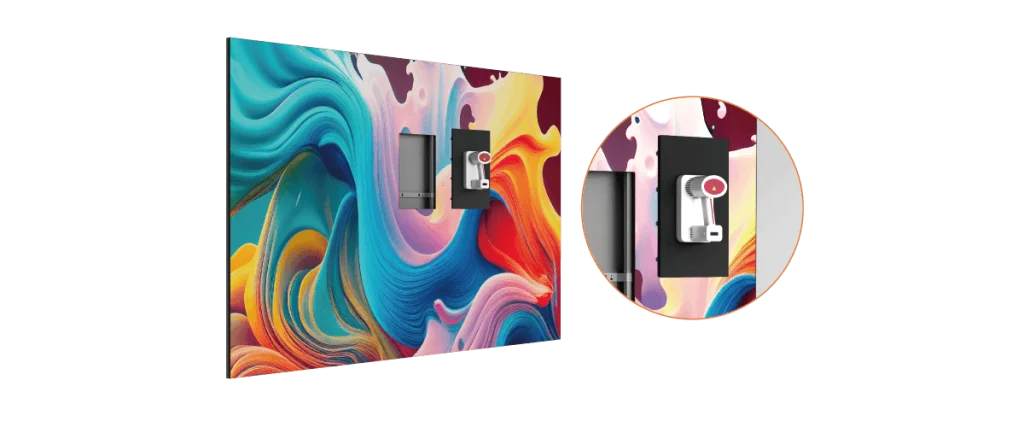

Full Front Maintenance

By using vacuum maintenance tools, it simplifies front-end maintenance without the need for extra channels, ensuring easy assembly and a user-friendly operation.


Specifications

Physical Parameter
Pixel pitch (mm)
1.86 mm
Panel dimensions (W*H, mm)
320x480x46.5 mm
Pixel resolution
172x258
Panel resolution
172x258
Pixel weight (kg)
1.85 kg
Module size (W*H, mm)
320x240 mm
LED type
Black SMD1515
Optoelectronic Parameter
Brightness (nit)
500 nits
Refresh rate (hz)
3840 Hz
Grayscale (bit)
12-13 bit
Viewing angle (H/V, °))
160/140 °
Power consumption (max./avg., W/m2)
320/107
Application Parameter
Storage temperature (°C)
-40~+60
Operating temperature (°C)
-10~+40
Storage humidity (RH)
10%~85%
Operating humidity (RH)
10%~80%
IP rating
IP40/IP21
Certificate
CCC, FCC, ETL, CE, RoHS
